COMBINATION SQUARE SET PROTRACTOR

PACK SIZE

The price displayed for this product is the unit price of the product. Where a PACK SIZE is indicated, this refers to the recommended ordering quantity and is also indicative of how many of these products are packaged in a box.

Stock: 20
Model: AC817-180-02
Weight: 1.78kg
Pack Dim: 168.00mm x 442.00mm x 442.00mm
UPC: 6009515842826

ACCUD

Price:

R 4,157.88

Ex VAT: R 3,615.55

Available Options

Stockist

Description
Specifications

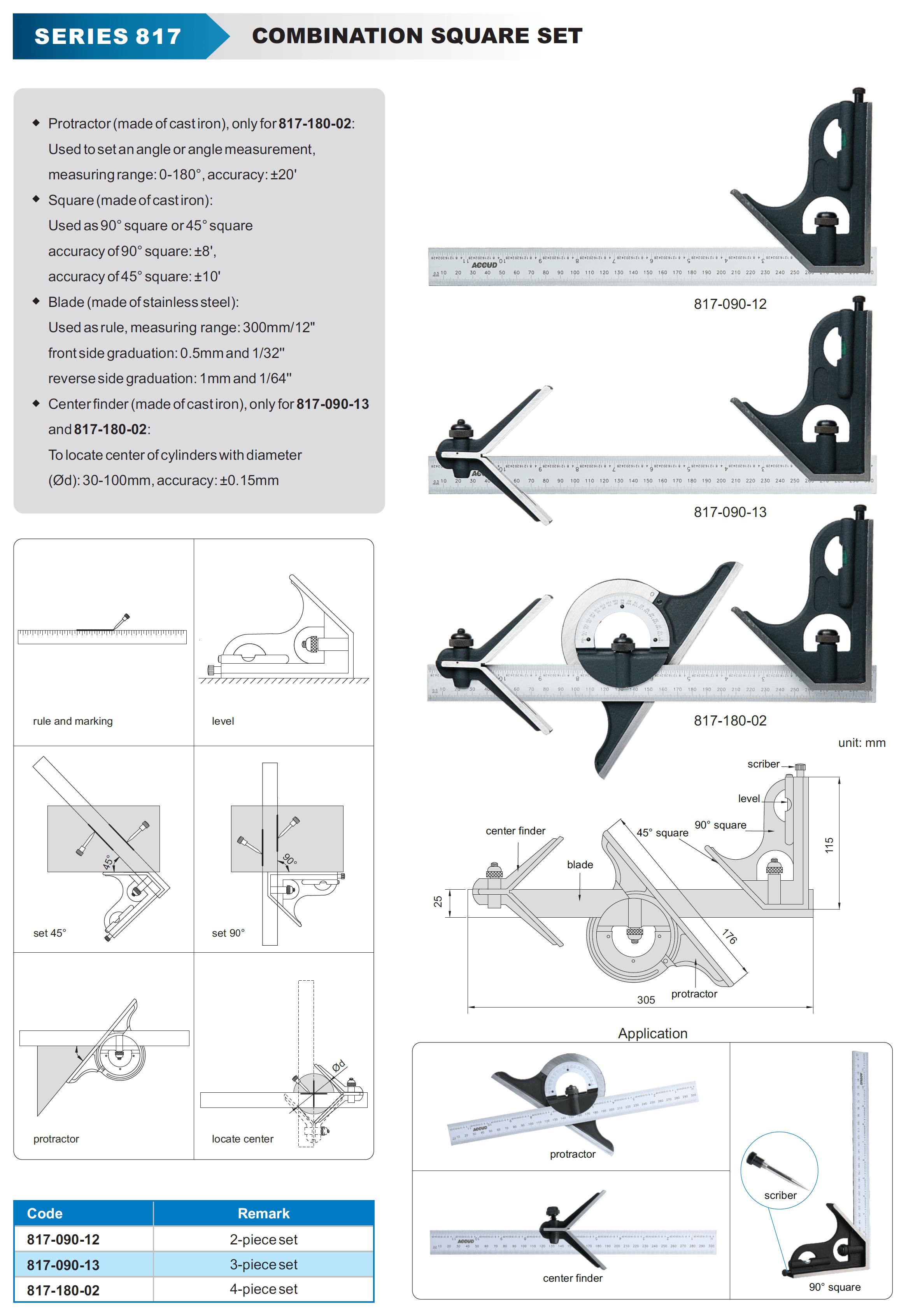

Combination Square Set Protractor
SERIES 817

Combination Square Set, a versatile and essential tool used in various trades, including carpentry, metalworking, and engineering. It is designed to perform multiple functions, such as measuring angles, checking for squareness, and marking workpieces. The combination square set includes a ruler, a square head, a protractor head and a center head, all of which can be attached to the ruler to perform different tasks.

Protractor (made of cast iron), only for 817-180-02:
Used to set an angle or angle measurement, measuring range: 0-180°, accuracy: ±20&
Square (made of cast iron):
Used as 90° square or 45° square accuracy of 90° square: ±8&, accuracy of 45° square: ±10&
Blade (made of stainless steel):
Used as rule, measuring range: 300mm/12" front side graduation: 0.5mm and 1/32" reverse side graduation: 1mm and 1/64"
Used as rule, measuring range: 600mm/24" front side graduation: 0.5mm and 1/32" reverse side graduation: 1mm and 1/64"
Center finder (made of cast iron), only for 817-090-13 and 817-180-02:
To locate center of cylinders with diameter (Ød): 30-100mm, accuracy: ±0.15mm
