DIAMOND BLADE SEGMENTED 115 X 22.23 BRICK & MASONRY 10PACK

Name: DIAMOND BLADE SEGMENTED 115 X 22.23 BRICK &AMP; MASONRY 10PACK
Brand: D-TECH
SKU: DT20115-3-10P
Price: 437.00 ZAR
Availability: OutOfStock

In Stock Soon

PACK SIZE

The price displayed for this product is the unit price of the product. Where a PACK SIZE is indicated, this refers to the recommended ordering quantity and is also indicative of how many of these products are packaged in a box.

Pack Size: 100
Stock: In Stock Soon
Model: DT20115-3-10P
Weight: 1.00kg
Pack Dim: 115.00mm x 115.00mm x 25.00mm

D-TECH

Price:

R 437.00

Ex VAT: R 380.00

Available Options

New Expected Date :

15/02/2025

Stockist

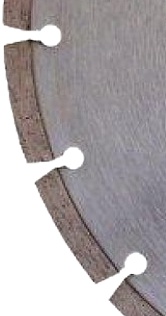

Segmented Diamond Blade - 10/Pack

Diameter: Ø115mm
Arbor: Ø22.23mm
Body Thickness: 1.0mm

The segmented diamond blade is also known as a dry cut blade and is mostly used on dry cutting applications. Air flow cools the blade by making use of segments and cut-outs (gullets) in the body of the blade to dissipate heat.

The segments also have improved clearance of debris to allow for a swifter cut with a relatively smooth finish, however chipping may occur.

Segmented blades are the best option when water isn&t available. The blades are durable and have a long life compared to other blades.

Application:

Hard density low abrasive materials such as cured concrete, stone, hard bricks.

Diamond Blade Tips

Make multiple shallow cuts instead of a single deep cut.
Do not side grind a cutting blade.
Fit the blade in the correct rotation direction. The life expectancy and cutting performance of the blade will be reduced when fitted reversed. It is also prone to becoming glazed.
When a diamond blade is glazed, it feels smooth to the touch with little to no diamonds exposed. This happens when the metal bond on the segment is too hard for the material it is cutting. To rectify - expose more diamonds on the segments by making shallow cuts in a soft, abrasive material like limestone.
A short diamond blade life is a result of using a blade with a soft metal bond on a more abrasive material such as sandstone or asphalt.
Wet cutting will extend the life of the blade
Select the correct blade for the material.

Features

Segmented rim design which improve debris clearance.
Gullets on the body to dissipate heat.
Increased durability and long blade life.
Can be used for dry and wet cutting.

Description	Specification
Packaging Type	Hanging Card
Product Dimensions	133(L) x 153(W) x 3(H)mm
Product Weight	100g
Diameter	Ø115mm
Arbor	Ø22.23mm
Body Thickness	1.0mm
Segment Height	8mm
Segment Length	35mm
Segment Thickness	2.1mm
MAX RPM	13 300
