DIAMOND BLADE 230MM SEGMENTED DELROCK

Name: DIAMOND BLADE 230MM SEGMENTED DELROCK
Brand: DELROCK
SKU: TS20230
Price: 220.05 ZAR
Availability: OutOfStock

In Stock Soon

PACK SIZE

The price displayed for this product is the unit price of the product. Where a PACK SIZE is indicated, this refers to the recommended ordering quantity and is also indicative of how many of these products are packaged in a box.

Stock: In Stock Soon
Model: TS20230
Weight: 0.63kg
Pack Dim: 230.00mm x 230.00mm x 5.00mm
UPC: 6009675086108

DELROCK

Price:

R 220.05

Ex VAT: R 191.35

Available Options

New Expected Date :

10/01/2025
29/01/2025

Stockist

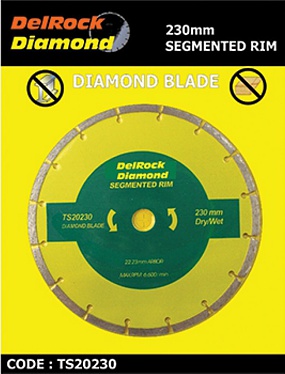

Segmented diamond blade

Diameter: Ø230mm
Bore: Ø22.23mm
Max rpm: 6,600 rpm
Use: Concrete, brick, paving & building materials

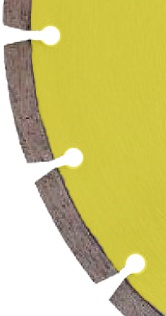

The segmented diamond blade is also known as a dry cut blade and is mostly used on dry cutting applications. Air flow cools the blade by making use of segments and cut-outs (gullets) in the body of the blade to dissipate heat.

The segments also have improved clearance of debris to allow for a swifter cut with a relatively smooth finish, however chipping may occur.

Segmented blades are the best option when water isn&t available. The blades are durable and have a long life compared to other blades.

Diamond blade tips

Make multiple shallow cuts instead of a single deep cut.
Do not side grind a cutting blade.
Fit the blade in the correct rotation direction. The life expectancy and cutting performance of the blade will be reduced when fitted reversed. It is also prone to becoming glazed.
When a diamond blade is glazed, it feels smooth to the touch with little to no diamonds exposed. This happens when the metal bond on the segment is too hard for the material it is cutting. To rectify - expose more diamonds on the segments by making shallow cuts in a soft, abrasive material like limestone.
A short diamond blade life is a result of using a blade with a soft metal bond on a more abrasive material such as sandstone or asphalt.
Wet cutting will extend the life of the blade
Select the correct blade for the material.

consider safety for your health and the people around you
General safety suggestions: It is advisable to always have the following items nearby and in a good condition Eye protection – clean and scratch free Hearing protection – quality earmuffs Dust masks – discard old and dirty masks Gloves – for easy handling of material and hand protection

Wear Gloves	Eye Protection	Hearing Protection	Dust Mask
