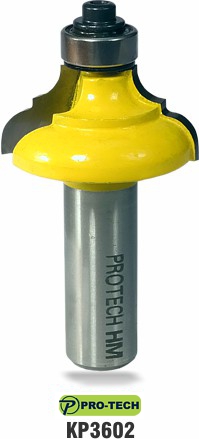

CLASSICAL OGEE BIT 1 5/16" X 5/8" 1/2" SHANK

CLASSICAL OGEE BIT 1 5/16" X 5/8" 1/2" SHANK
CLASSICAL OGEE BIT 1 5/16" X 5/8" 1/2" SHANK
PACK SIZE
The price displayed for this product is the unit price of the product. Where a PACK SIZE is indicated, this refers to the recommended ordering quantity and is also indicative of how many of these products are packaged in a box.
  • Stock: 18
  • Model: KP3602
  • Weight: 0.10kg
  • Pack Dim: 36.00mm x 86.00mm x 86.00mm
  • UPC: 6009600401662
Price:
R 890.96
Ex VAT: R 774.75

Available Options

Pro-Tech. South African favourite for over 30 YearsEdge profile router bits
Classical Ogee profile

Quirk topped ogee router bit sampleCarbide Tipped

The classical ogee profile router bit is designed for creating decorative mouldings or edge profiles. This cutter allows one to shape a convex and concave shape with a bead in the middle of the two curves. Picture framers love this design in combination with our classical bit range (KP3401 and KP3403).

Classical ogee profile example

An extra bead over the bottom corner is possible when replacing the guide bearing with a smaller size (KP100 3-8).

Change the guide bearing size

This router bit has a 12.7 mm shank (shaft) that will fit most large routers. Please ensure that you select a router bit with a shank (shaft) size that will fit into your router collet.

PRO-TECH router bits are manufactured in Taiwan.

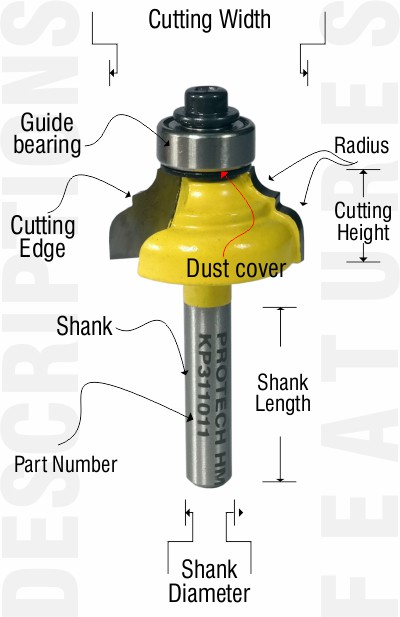

Classical ogee features

consider safety for your health and the people around you

General safety suggestions:

It is advisable to always have the following items nearby and in a good condition

  • Eye protection – clean and scratch free
  • Hearing protection – quality earmuffs
  • Dust masks – discard old and dirty masks
  • Gloves – for easy handling of material and hand protection
Wear Gloves Eye Protection Hearing Protection Dust Mask
Wear Gloves
Eye Protection
Hearing Protection
Dust Mask

To use router bits safely (and to get the best results from your router), the router bits need to be installed properly into the router&s collet. Improper installation of your bits can cause excessive chatter and could increase the likelihood that the bits will break when in use.

Clean and sharp

First of all, before beginning any routing operation, check your bits to make sure that they are clean, relatively free of pitch, and most of all, sharp. If the bit is dull, chipped, is excessively burned or has any other defect, it should be sharpened or replaced before use.

Correct collet and collet nut fit

Most router collets have a recess (groove) that needs to click into a circlip that resides inside the collet nut. Failing to ensure that the collet "clicked" into the collet nut will cause you to struggle to remove the router bit after tightening. This could cause the collet to break or be removed by a technical repair centre.



Correct fit inside the collet

When installing the bit into the collet, do not tighten the collet with the bit "seated." Instead, insert the bit until the shank (bit shaft) reaches the bottom of the collet, then ease it out about 2 mm before tightening the collet.

When the bit is tightened, there should be no less than  2/3 &s of the length of the shank in the collet. If your bit has a shank that is too short, then the bit should be replaced.



Safety gear

There are a few other safety measures to keep in mind whenever you use your router. First of all, remember to always wear appropriate safety gear as indicated above.

Correct speed setting

Second, be sure to set your router to the proper speed for your router bit. Setting your router to an incorrect speed will not only affect the router&s performance, but also can cause the bit to break much more easily and even cause bodily harm. The speed at which a router bit turns can be important. The typical router runs at about 22,000 rpm, which is fine for most bits. But as the diameter of the bit increases, you’ll want to slow things down.

Also, before beginning any routing operation, be certain that you give the router&s motor time to come up to full speed for the chosen setting. Beginning to cut before the bit is at full speed can give less than desired results.

Safety gearObserve the following at all times

  • Wear a protective face shield or Safety Glasses to prevent eye and face injury.
  • Wear ear plugs or ear muffs to protect your hearing.
  • Use a respirator or dust mask to give protection from dust particles. Wood dust may remain in the air for hours after using power tools.
  • Always read and follow router operator&s manual instructions.
  • Make sure that router rpm&s and the bit selected match.
  • Dress properly. Wear short sleeves, no loose fitting clothes, proper footwear and no jewellery. Tie back long hair.
  • UNPLUG!!!!Always be sure the router is unplugged before replacing bits and that the switch is off before connecting the router.
  • Be sure the router bit has completing stopped spinning before sitting the router down.
  • Be sure bits, clamps and attachments are secure before starting up.
  • Keep children, pets and visitors at a safe distance.
  • Be especially cautious when working small pieces.
  • Keep hands and fingers away from revolving bits and cutters.
  • Do not operate routers in moist or wet areas.
  • Always grip tool tightly and be prepared at start-up to resist the motor torque.
  • When using a router table, make sure on/off switch is easily accessible.
  • Learn the sound of your router and shut it off at any unfamiliar sounds or irregularities.
    Never start the router with the bit in contact with the material.
  • Always feed in the proper direction, against the direction of bit rotation.
  • Maintain equipment. Replace worn parts, discard worn-out bits and check router periodically. Clean parts with appropriate solvents.
  • Don&t operate a tool if you are tired or under the influence of medication, drugs, alcohol or while smoking.
  • Check wood for nails, screws or loose knots before routing.
  • Keep your mind on your work, avoid distractions, work at a comfortable pace and stop before you get tired.

Do a dry run

  • Place the router on the final work surface and test you cut by moving the router over the whole are to cut with THE ROUTER SWITCHED OFF
  • You do not want to waste an expensive piece of wood
  • You do not want to start all over
  • Never met anyone with spare fingers - SAFETY
Part No. Shank dia. Cutting width Cutting Height Radius (r)
KP3602 1/2 inch 15/16 inch 5/8 inch 5/64 inch
12.7 mm 33.34 mm 17.46 mm 1.985 mm



Length of Shank: 38 mm
Replacement bearing part number: KP100 1-2

Classical Ogee sample Clasical ogee

Take CareSuggested speed - 18000 rpm
