SHIELD ANCHOR EYEBOLT M8X87MM X2 -BAG
SHIELD ANCHOR EYEBOLT M8X87MM X2 -BAG
- Stock: 153
- Model: RAW R-S1-RBL-08E-2
- Weight: 0.12kg
- Pack Dim: 24.00mm x 164.00mm x 22.00mm
- UPC: 5906675094199
Price:
R 165.72
Ex VAT: R 144.10
R-RBL-E Rawlbolt® - eye bolt
Cat No: R-S1-RBL-08E/2
Thread: M8
Qty: 2 |Bag
World&s most popular all-purpose expanding shield anchor - eye bolt version
- Eyebolt designed & manufactured for maximum performance
- Product recommended for applications requiring fire resistance
- Three-pieces expanding sleeve of maximum expansion provides optimal load and safety of use in any substrate
- Eye Rawlbolts are not suitable for all arrest systems nor shock loading
Installation guide
 |
 |
 |
 |
 |
- Drill a hole of required diameter and depth. Note: When fixing into brickwork, mortar joints should be avoided
- Clear the hole of drilling dust and debris (using blowpump or equivalent method)
- Insert the anchor (tap home until flush with surface) and position eye accordingly
- Tighten to recommended torque, using the hex nut (not the eye)
Features:
- Eyebolt designed & manufactured for maximum performance
- Product recommended for applications requiring fire resistance
- Three-pieces expanding sleeve of maximum expansion provides optimal load and safety of use in any substrate
- Eye Rawlbolts are not suitable for all arrest systems nor shock loading
Applications
- Supporting guy ropes, stays and cables
- Supporting ladder restraints
Base materials Suitable for use in
- Concrete
- Natural Stone
- Hollow-core Slab
- Hollow Brick
- QTY per bag:
- 2

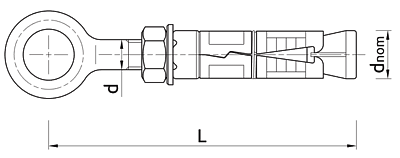

- Length L:
- 87 mm
- Diameter Ø external:
- 14 mm (drill size)
- Thread:
- M8
