LOCK MORTICER WITH 18MM & 22MM CUTTERS IN PLASTIC CASE SCREW TYPE

Q: What is included in the price of the DBB Morticer?

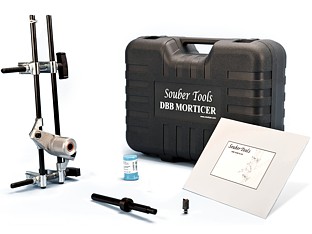

A: Every DBB Morticer Kit comes in a heavy duty case, the jig of your choice, self centring or adjustable stops, drive shaft, one 18mmwood cutter and an instruction manual.

Q: Are there any additional and special accessories for the DBB morticer?
A: Yes. We provide spare parts for each individual piece of the Morticer - see our section on Spare Parts for the full list of our off-the-shelf replacement parts.

Q: Are there any instructions with the DBB Morticer?
A: Yes. We provide a comprehensive instruction manual that is complete with illustrations and written instructions. It is an easy to follow guide for either the novice or for the experienced professional.

Q: What cutters come with the Jig?
A: One wood cutter. Ask your supplier for precise details and other options.

Q: What are the cutters made from?
A: Mortice wood cutters are carbide tipped. Plunging and aluminium cutters are HSS.

Q: Can the wood cutters be re-sharpened?
A: Yes. The instruction manual provides advice and instructions on sharpening.

Q: Can I plunge with the wood cutters
A: Yes, four (4) sizes of plunging cutters are now available.

Q: How deep can the Jig cut?
A: 90mm with the Standard shaft (100mm without depth stop)
170mm with the Long shaft (180mm without depth stop)
Longer shafts are available as a special order.

Q: What is the bearing system?
A: These are sintered bronze bushes impregnated with oil

Q: How long do the bearings last?
A: Typically, they will last 2-300 lock installations

Q: Are replacement bushes available?
A: They are available, but require specialist equipment to replace. We suggest ordering a housing kit instead which comes pre-assembled and takes just a minute to change over.

Q: What thickness of door will the jig suit?
A: Standard morticers will suit doors up to 55mm thick. For doors 55mm+ use the DBB/HK/S
Offset Morticers will suit doors up to 95mm thick, but this jig is not self- centring!

Q: Will the jig work on aluminium?
A: Yes, there are 4 cutters for aluminium doors. See the leaflet for precise details.

Q: Do you have cutters for steel doors?
A: No, not at present, but we have plans to develop some.

Q: Do I have to keep re-setting the jig when I take it off the door?
A: If the locks and door thicknesses are the same, you can use the tube clip at the top to create a &datum& for repeat work. Simply slide the clip down to the top clamp. This will enable the user to cut identical holes without any re-setting.

Q: Does the Jig come with a drilling machine?
A: No, you have to provide your own.

Q: Is there a recommended Drill specification?
A: 800 Watt, 13mm (1/2") Chuck and 2-3000 rpm is an ideal drill, but not SDS. Impact/hammer must be set to &off&.

Q: Can the jig be used to install electric locks?
A: Yes,there are two (2) long drills and a long drill adapter to drill through the door for lock cables.

Q: How do I prevent the knots in doors forcing the long drill off-line?
A: Both Long Drills use special geometry so that it wants to stay on line. Our instructions explain how to keep the drill central.

General safety suggestions:

It is advisable to always have the following items nearby and in a good condition

• Eye protection – clean and scratch free
• Hearing protection – quality earmuffs
• Dust masks – discard old and dirty masks
• Gloves – for easy handling of material and hand protection
