MAG BASE AUTO 55MM DRILL 510RPM 16500N 230MM STROKE 220V MULTI FUNCT
MAG BASE AUTO 55MM DRILL 510RPM 16500N 230MM STROKE 220V MULTI FUNCT
Price:
R 36,137.78
Ex VAT: R 31,424.16

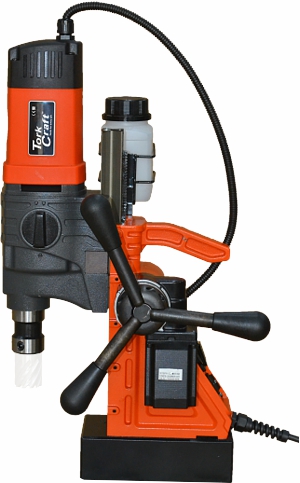

55mm MAGNETIC BASE DRILL 16500N
The magnetic base drill is fitted on a strong dual-coil magnet with a maximum core drill capacity of 55mm.
With the added auto-feed function with auto-stop, the drill no longer needs variable speed. Instead, it automatically adjusts the feed speed according to the load.
Application:
- Building construction
- Bridge construction
- Ship/Marine Construction
- Annular cutters or twist drill bits
- Horizontal or overhead drilling
Great for horizontal, side face and top face drilling
Getting the best out of a Magnetic base drill:
- Always wear proper safety PPE (Personal Protective Equipment).
- Ensure the machine is switched off and unplugged from the power supply when changing or adjusting the cutting bits.
- During machine operation the cutters and drill bits must be lubricated and cooled with a suitable cutting fluid.
- Ensure the surface where the machine will be placed on is level, rust free and clean of any varnish or paint.
- Do not try and use the magnetic drill on a non-magnetic surface.
- Do not use the magnetic drill on a structure where welding is in progress as it could cause damage to the machine.
- Always use core drill bits with a pilot pin
| Description | Specifications |
| Rated voltage & frequency | 220V-240V @ 50-60 Hz |
| Cable length | 2.5m |
| Core drill capacity | Ø 55mm |
| Rated imput power | 1700W |
| No-Load speed | 280/510 rpm |
| Maximum magnetic attraction | 16000N |
| Cutting depth | 40mm |
| Stroke | 230mm |
| Magnet Dimensions | 166(L) x 80(W) x 50(H) mm |
Download the Exploded view:
View the Exploded view:
Download the Instruction Manual:
View the Instruction Manual:
Download the Spec Sheet:
View the Spec Sheet:
Download the Leaflet:
View the Leaflet:
Model: TCMD0035-55QE-SK019
UPC: 6009515878320
PINION SHAFT & KEY (10-13) STAND SERVICE KIT....
R 585.48
Ex VAT:R 509.11
Model: TCMD0035-55QE-SK023
UPC: 6009515878368
CIRCUIT BOARD WITH CLAMP RING (49/50) STAND SERVICE KIT....
R 5,512.88
Ex VAT:R 4,793.81
Model: TCMD0055QE-SK06
UPC: 6009515878177
DOVE TAIL BLOCK WITH SCREW (41/42) MOTOR SERVICE KIT....
R 400.15
Ex VAT:R 347.96
Model: TCMD0055QE-SK07
UPC: 6009515878184
SHIFT KNOB COMPL. SET (24/35-40) MOTOR KIT....
R 386.14
Ex VAT:R 335.77
Model: TCMD0055QE-SK08
UPC: 6009515878191
GEAR & SHAFT SET 1 COMPL. (25-29) MOTOR KIT....
R 751.59
Ex VAT:R 653.56
Model: TCMD0055QE-SK05
UPC: 6009515878160
GEAR & GEAR COVER (16/18/19) MOTOR SERVICE KIT....
R 778.17
Ex VAT:R 676.67
Model: TCMD0035QE-SK016
UPC: 6009515880613
COOLANT VALVE WITH PIPE & COUPLING (26-28) STAND SERVICE KIT....
R 249.55
Ex VAT:R 217.00
Model: TCMD0055QE-SK02
UPC: 6009515878139
SPINDLE & SCREW (6/7/13) MOTOR SERVICE KIT....
R 1,553.39
Ex VAT:R 1,350.77
Model: TCMD0055QE-SK03
UPC: 6009515878146
GEARBOX COMPL. (11/23) MOTOR SERVICE KIT....
R 914.76
Ex VAT:R 795.44
Model: TCMD0055QE-SK01
UPC: 6009515878122
GASKET SET & WATER SEAL (1-5/8/10/12/14/17) MOTOR SERVICE KIT....
R 256.93
Ex VAT:R 223.42
Model: TCMD0035-55QE-SK018
UPC: 6009515878313
REPL. HANDLE/PINION/GEAR/BEARING ( 1-23) SERVICE KIT....
R 2,775.23
Ex VAT:R 2,413.24
Model: TCMD0055QE-SK14
UPC: 6009515878252
HOUSING KIT COML. (51/56/57/63/64/66) MOTOR SERVICE KIT....
R 2,717.68
Ex VAT:R 2,363.20
Model: TCMD0035-55QE-SK020
UPC: 6009515878337
TOP MANDREL SET (1-5) STAND SERVICE KIT....
R 205.25
Ex VAT:R 178.48
Model: TCMD0035-55QE-SK022
UPC: 6009515878351
AUTO-EEED MOTOR COMPL. SET (31-38) STAND SERVICE KIT....
R 6,214.27
Ex VAT:R 5,403.71
Model: TCMD0035-55QE-SK021
UPC: 6009515878344
GEAR, BEARING & HOUSING SET COMPL. (14-23) STAND SERVICE KIT....
R 1,175.37
Ex VAT:R 1,022.06
Model: TCMD0035-55QE-SK025
UPC: 6009515878382
MAGNET & MOTOR SWITCH SET (61/63) STAND SERVICE KIT....
R 101.89
Ex VAT:R 88.60
Model: TCMD0055QE-SK04
UPC: 6009515878153
BEARING KIT (6/15) MOTOR SERVICE KIT....
R 151.35
Ex VAT:R 131.61
Model: TCMD0055QE-SK15
UPC: 6009515878269
REPL. CARBON BRUSH (61) MOTOR SERVICE KIT....
R 110.75
Ex VAT:R 96.30
Model: TCMD0035QE-SK017
UPC: 6009515880620
COOLANT BOTTLE BRACKET WITH SCREW (29/30/66) STAND SERVICE KIT....
R 171.28
Ex VAT:R 148.94
Model: TCMD0035-55QE-SK024
UPC: 6009515878375
REPL. FUSE (62) STAND SERVICE KIT....
R 34.70
Ex VAT:R 30.17
