MAG BASE CORE 60MM & TWIST DRILL 23MM 440RPM 16000N 220MM STROKE 220V
MAG BASE CORE 60MM & TWIST DRILL 23MM 440RPM 16000N 220MM STROKE 220V
Price:
R 24,425.34
Ex VAT: R 21,239.43

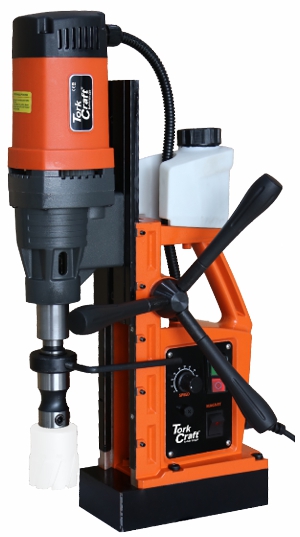

60mm MAGNETIC BASE DRILL 16000N
The magnetic base drill is fitted on a strong dual-coil magnet with a maximum core drill capacity of 60mm. The speed is adjustable electronically between 100-440 rpm.
Application:
- Building construction
- Bridge construction
- Ship/Marine Construction
- Annular cutters or twist drill bits
- Horizontal or overhead drilling
Great for horizontal, side face and top face drilling
Getting the best out of a Magnetic base drill:
- Always wear proper safety PPE (Personal Protective Equipment).
- Ensure the machine is switched off and unplugged from the power supply when changing or adjusting the cutting bits.
- During machine operation the cutters and drill bits must be lubricated and cooled with a suitable cutting fluid.
- Ensure the surface where the machine will be placed on is level, rust free and clean of any varnish or paint.
- Do not try and use the magnetic drill on a non-magnetic surface.
- Do not use the magnetic drill on a structure where welding is in progress as it could cause damage to the machine.
- Always use core drill bits with a pilot pin
| Description | Specifications |
| Rated voltage & frequency | 220V-240V @ 50-60 Hz |
| Cable length | 2.5m |
| Core drill capacity | Ø 60mm |
| Rated imput power | 1890W |
| No-Load speed | 100-440 rpm variable |
| Maximum magnetic attraction | 16000N |
| Cutting depth | 60mm |
| Stroke | 220mm |
| Magnet Dimensions | 202(L) x 102(W) x 45(H) mm |
Download the Specification sheet:
View the Specification sheet:
Download the Exploded view:
View the Exploded view:
Download the Instruction Manual:
View the Instruction Manual:
Download the Leaflet:
View the Leaflet:
Model: TCMD0068HD-SK04
UPC: 6009515878429
SPINDLE & SCREW (13/18/21) MOTOR SERVICE KIT....
R 1,049.86
Ex VAT:R 912.92
Model: TCMD0068HD-SK17
UPC: 6009515877903
BEARING & GEAR SET (11-16) STAND SERVICE KIT....
R 467.35
Ex VAT:R 406.39
Model: TCMD0068HD-SK10
UPC: 6009515877835
ARMATURE (31) MOTOR SERVICE KIT....
R 2,364.03
Ex VAT:R 2,055.68
Model: TCMD0068HD-SK20
UPC: 6009515877934
PANEL PLATE WITCH SCREWS (32/37/38) STAND SERVICE KIT....
R 892.61
Ex VAT:R 776.18
Model: TCMD0068HD-SK03
UPC: 6009515878412
NUT & STOP LEVER (10/11) SERVICE KIT....
R 69.40
Ex VAT:R 60.35
Model: TCMD0068HD-SK22
UPC: 6009515877958
SPEED & MOTOR SWITCH (39-41) STAND SERVICE KIT....
R 479.90
Ex VAT:R 417.30
Model: TCMD0068HD-SK15
UPC: 6009515877880
COOLANT BOTTLE WITH CAP (52-54) STAND SERVICE KIT....
R 112.22
Ex VAT:R 97.58
Model: TCMD0068HD-SK12
UPC: 6009515877859
HOUSING KIT COML. (33/38/39/45-47/49/50) MOTOR SERVICE KIT....
R 1,506.13
Ex VAT:R 1,309.68
Model: TCMD0068HD-SK11
UPC: 6009515877842
STATOR WITH SCREWS (34-37) MOTOR SERVICE KIT....
R 1,707.69
Ex VAT:R 1,484.95
Model: TCMD0068HD-SK13
UPC: 6009515877866
REPL. CARBON BRUSH (42) MOTOR SERVICE KIT....
R 110.75
Ex VAT:R 96.30
Model: TCMD0068HD-SK01
UPC: 6009515878399
GASKET SET & WATER SEAL (1-6/8/9/12/14) MOTOR SERVICE KIT....
R 331.50
Ex VAT:R 288.26
Model: TCMD0068HD-SK02
UPC: 6009515878405
REPL. MT2 TAPER SHAFT (7) SERVICE KIT....
R 1,518.68
Ex VAT:R 1,320.59
Model: TCMD0068HD-SK06
UPC: 6009515878443
GEARBOX COMPL. (16/17/23/24/) MOTOR SERVICE KIT....
R 4,427.58
Ex VAT:R 3,850.07
Model: TCMD0068HD-SK07
UPC: 6009515877804
GEAR & GEAR COVER (20/22/29) MOTOR SERVICE KIT....
R 466.60
Ex VAT:R 405.74
Model: TCMD0068HD-SK08
UPC: 6009515877811
GEAR & SHAFT SET COMPL. (25-28) MOTOR KIT....
R 962.75
Ex VAT:R 837.17
Model: TCMD0068HD-SK16
UPC: 6009515877897
COOLANT VALVE WITH PIPE & COUPLING (24/55-57) STAND SERVICE KIT....
R 320.42
Ex VAT:R 278.63
Model: TCMD0068HD-SK14
UPC: 6009515877873
BRUSH HOLDER (40/41/43/44) MOTOR SERVICE KIT....
R 314.51
Ex VAT:R 273.49
Model: TCMD0068HD-SK24
UPC: 6009515888305
ELECTRIC CORD C/W PLUGTOP & PROTECTOR (30/31) SERVICE KIT....
R 392.66
Ex VAT:R 341.44
Model: TCMD0068HD-SK05
UPC: 6009515878436
BEARING KIT (15/19) MOTOR SERVICE KIT....
R 180.15
Ex VAT:R 156.65
Model: TCMD0068HD-SK09
UPC: 6009515877828
BEARING KIT FOR ARMATURE (30/32) MOTOR SERVICE KIT....
R 187.53
Ex VAT:R 163.07
