3 POINTS INSIDE MICROMETER SET 20-50MM (MICROMETERS INC. 20-25, 25-30,

Name: 3 POINTS INSIDE MICROMETER SET 20-50MM (MICROMETERS INC. 20-25, 25-30,
Brand: ACCUD
SKU: AC362-509-05
Price: 47505.24 ZAR
Availability: OutOfStock

Out Of Stock

PACK SIZE

The price displayed for this product is the unit price of the product. Where a PACK SIZE is indicated, this refers to the recommended ordering quantity and is also indicative of how many of these products are packaged in a box.

Stock: Out Of Stock
Model: AC362-509-05
Weight: 4.14kg
Pack Dim: 330.00mm x 290.00mm x 100.00mm
UPC: 6009515893576

ACCUD

Price:

R 47,505.24

Ex VAT: R 41,308.90

Available Options

Stockist

3 Point Inside Micrometer set 20mm - 50mm
SERIES 362 - SET

Complete set to measure a range 20mm up to 50mm. A precision measuring instrument designed to measure the internal diameter of bores, cylinders, and other similar features with high accuracy. This tool is commonly used in engineering, machining, and quality control to ensure that internal dimensions meet specified tolerances. Unlike traditional inside micrometers, the three-point contact system allows for more stable and reliable measurements, particularly in larger bores.

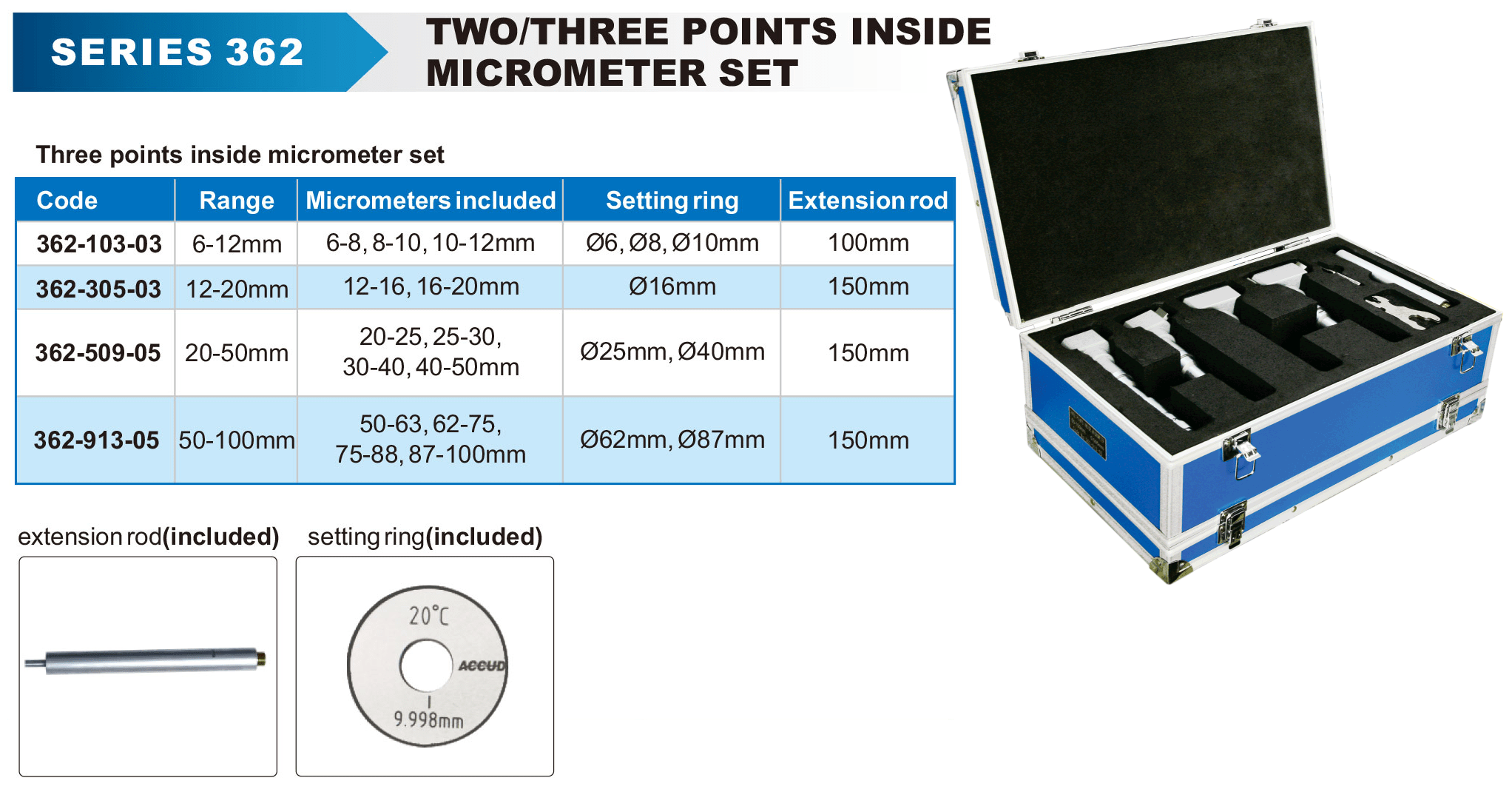

The set AC362-509-05 includes:

Micrometers: 20 - 25mm, 25 - 30mm, 30 - 40mm, 40 - 50mm
Full range of measurements: 20mm - 50mm
Setting Rings included: Ø25mm and Ø40mm
Extention Rod: 150mm

How it works:

Three-point contact: The micrometer has three measuring points that evenly distribute pressure on the inner surface of the hole, ensuring accurate and repeatable measurements.
Digital display: The measured diameter is displayed digitally, eliminating the need for manual reading and reducing the possibility of errors.
Extension rods: These can be used to measure deeper holes.

Applications

Machining and Metalworking: Used to measure the internal diameters of bores and holes in metal components, ensuring that they meet the required specifications.
Quality Control: Essential in inspection processes to verify the accuracy of internal dimensions in manufactured parts.
Engineering: Applied in various engineering tasks where precise internal measurements are critical, such as in the design and fabrication of mechanical parts.
Automotive and Aerospace Industries: Used for measuring the internal diameters of engine cylinders, bearing races, and other critical components that require precise tolerances.

Advantages of Three-Point Micrometers:

Improved accuracy: Ensures precise centering and measurement compared to two-point micrometers.
Reduced measurement error: Minimizes the impact of bore irregularities.
Suitable for various shapes: Can be used for both cylindrical and irregular bores.

Usage Procedure

Select the Appropriate Measuring Head: If the micrometer comes with interchangeable heads, choose the one that matches the range of the bore to be measured.
Zero the Micrometer: Set the micrometer to zero using a calibrated ring gauge or setting standard.
Insert into the Bore: Carefully insert the measuring head into the bore, ensuring that the three-point contacts are aligned with the bore&s axis.
Expand the Measuring Points: Use the thimble to gently expand the measuring points until they make firm contact with the bore walls.
Read the Measurement: Observe the scale for the internal diameter measurement. Ensure that the micrometer is properly centered in the bore for an accurate reading.
