OUTSIDE MICROMETER 100-200MM 0.004MM ACC. 0.01MM GRAD. WITH INTERCH. A

OUTSIDE MICROMETER 100-200MM 0.004MM ACC. 0.01MM GRAD. WITH INTERCH. A
OUTSIDE MICROMETER 100-200MM 0.004MM ACC. 0.01MM GRAD. WITH INTERCH. A
PACK SIZE
The price displayed for this product is the unit price of the product. Where a PACK SIZE is indicated, this refers to the recommended ordering quantity and is also indicative of how many of these products are packaged in a box.
  • Stock: 8
  • Model: AC325-008-01
  • Weight: 1.87kg
  • Pack Dim: 380.00mm x 230.00mm x 38.00mm
  • UPC: 6009515860332
ACCUD ACCUD
Price:
R 7,682.52
Ex VAT: R 6,680.45

Available Options

Contact us
Stockist

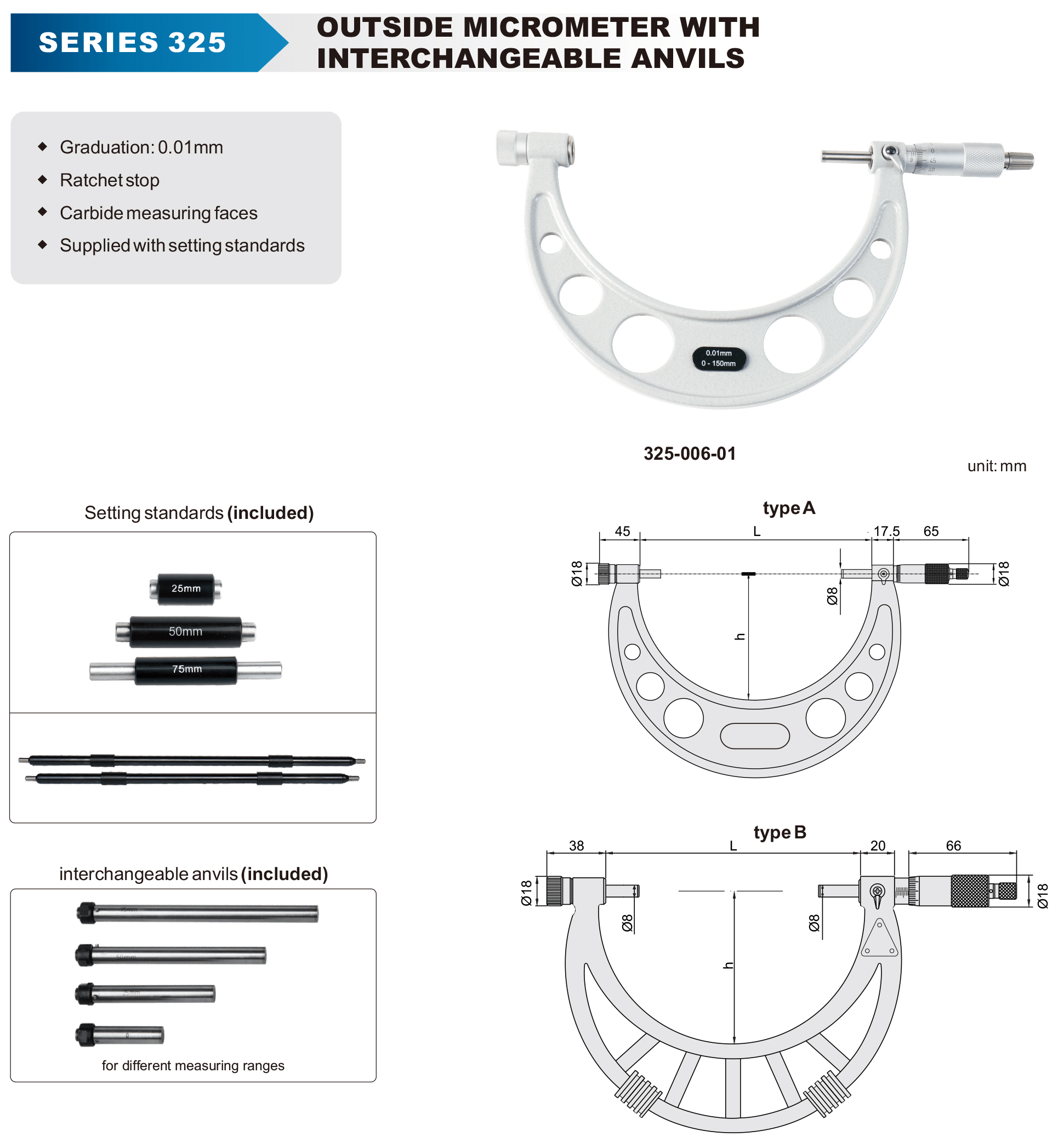

Outside Micrometer with interchangeable anvils 100 - 200mm
SERIES 325

A precision measuring instrument used to measure the external dimensions of objects, such as the outside diameter of shafts, the thickness of flat materials, and the width of small parts. It is widely used in machining, engineering, and quality control to ensure that components meet specified tolerances.

This type of micrometer is particularly useful for measuring a variety of surfaces and geometries, as the interchangeable anvils allow the user to adapt the tool to different measurement needs.

At a Glance

  • Graduation: 0.01mm
  • Ratchet stop
  • Carbide measuring faces
  • Interchangeable anvils
  • Supplied with setting standards

Applications

  • Machining and Metalworking: Used to measure the external dimensions of machined parts, such as the outside diameter of shafts and the thickness of flat materials, ensuring they meet design specifications.
  • Quality Control: Employed in inspection processes to verify the dimensional accuracy of manufactured parts, especially when dealing with varied surface geometries.
  • Engineering: Essential for precision measurement tasks in engineering, such as measuring the thickness of materials, the diameter of wires, and other small-scale dimensions.
  • Tool and Die Making: Used to ensure that tools and dies are manufactured to precise dimensions, with the ability to adapt to different measurement needs using interchangeable anvils.

Technical Specifications

Cat No Range Accuracy L Setting Standards Type b
AC325-002-01 0-50mm 4µm 58 25mm A 35
AC325-004-01 0-100mm 5µm 108 25, 50, 75mm A 57
AC325-006-01 0-150mm 6µm 158 25, 50, 75, 100, 125mm A 82
AC325-008-01 100-200mm 7µm 208 100, 125, 150, 175mm A 114
AC325-012-01 150-300mm 9µm 308 150, 175, 200, 225, 250, 275mm A 165
AC325-016-02 300-400mm 11µm 409 325, 375mm B 224
